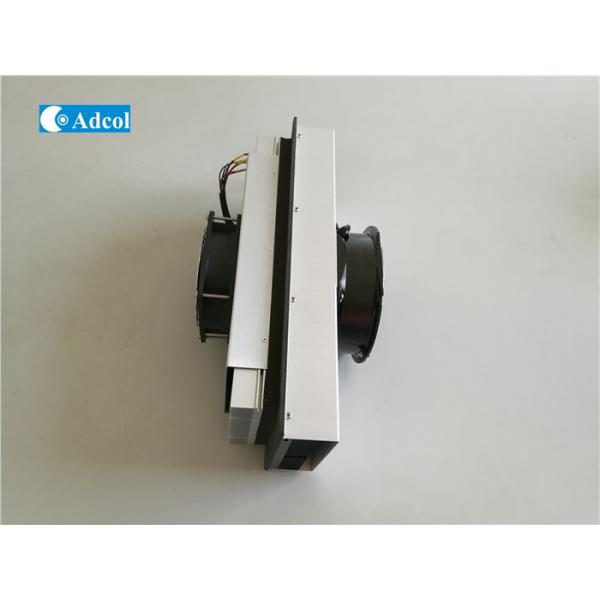

Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC

Name: Peltier Air Conditioner Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC
Brand: Adcol
Price: 1 USD

Cheap Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC wholesale

Brand Name : Adcol

Model Number : ATA150 - 24VDC

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 500Pcs per month

Delivery Time : 3 - 4 Weeks

Packaging Details : Solid Carton Packaging

Capacity : 149W

Input Voltage : 24VDC

Max.Ambient Temp. : 60 Degree C

Running Current : 8.7 amps

Weight : 7.5 kg

Rating Maintained : NEMA12

Contact Now

Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC

The ATA150-24VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers. They can cool to 72˚F below ambient or maintain ambient tem- peratures while removing up to 550 BTU/Hr (@ 77˚F ambient). 24 or 48 VDC configuration. These air conditioners are virtually maintenance-free, with no filters to change, and they can be mounted in any orientation, offering design flexibility with solid-state reliability.

Wiring Schematic (Power Connector)
Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC

Position	ATA150-24
1	TEC +
2	TEC -
3	Cabinet side fans +
4	Cabinet side fans -
5	Ambient side fans +
6	Ambient side fans -

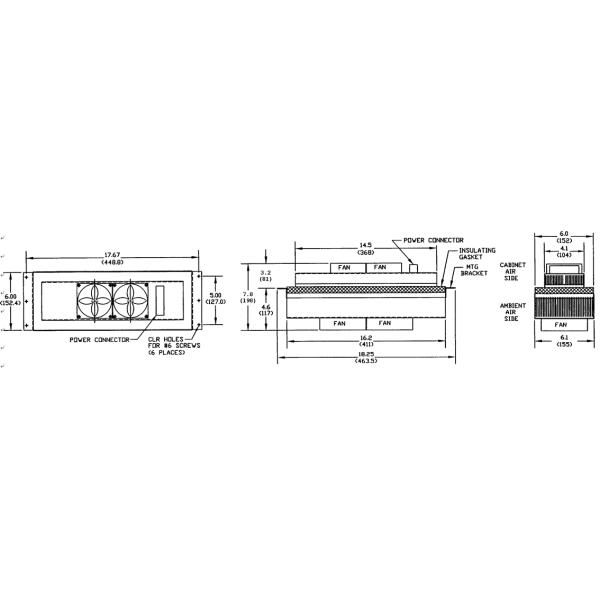

Dimensional Drawing
Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC

Performance Curve :

Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC

Model:	Adcol ATA150-24/48vdc
Capacity	149 Watts
Input Voltage	24/48 VDC
Max. Ambient Temp.	60˚C
Current (Running)	8.7/4.3 amps
Weight	7.5 kg
Rating Maintained	NEMA 12

Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC
